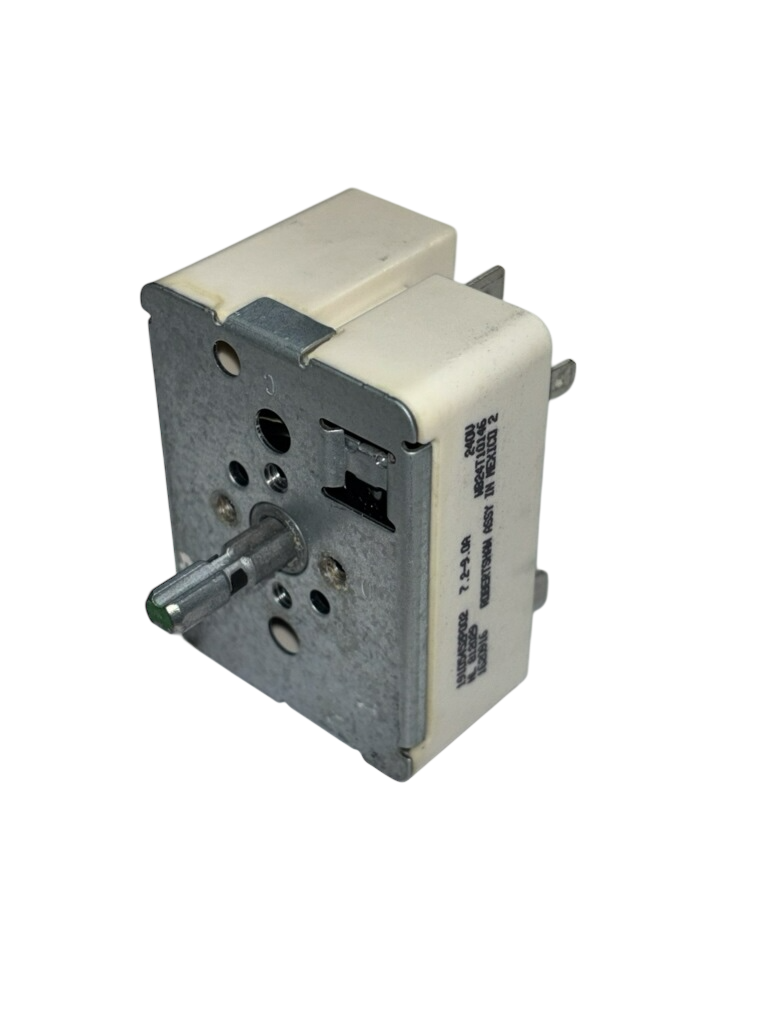

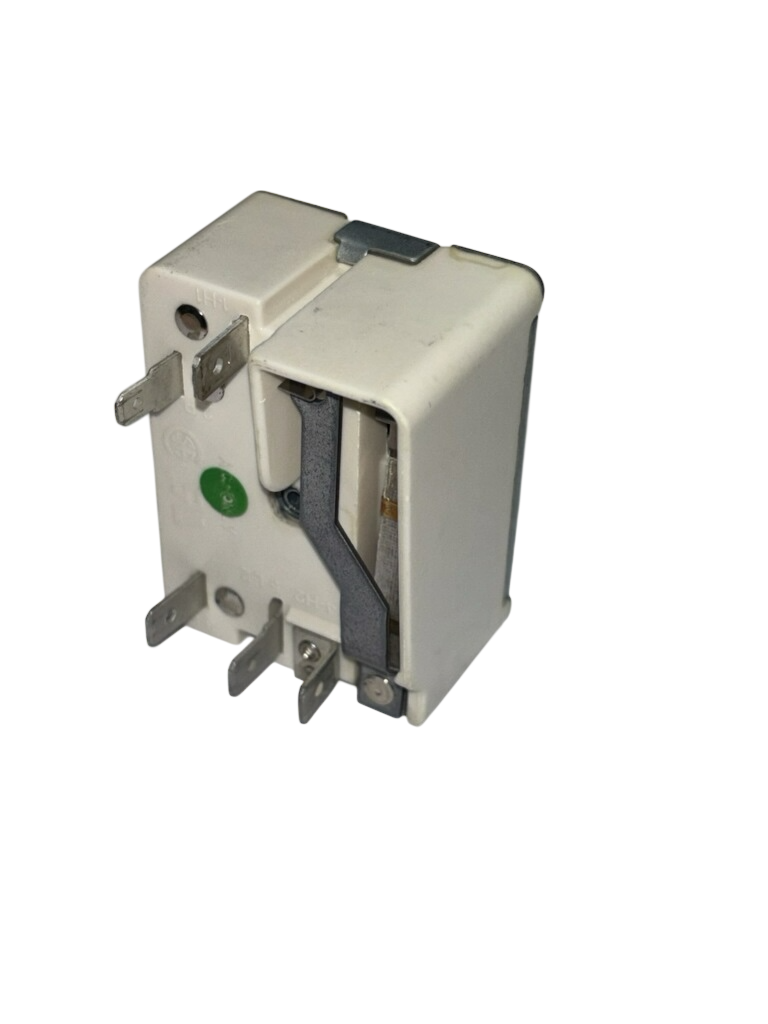

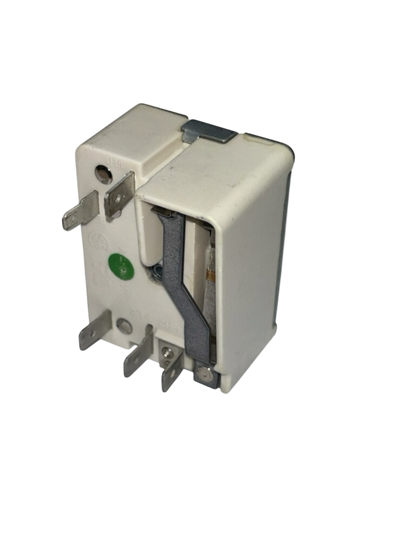

GE Range Infinite Switch (USED) WB24T10146 – 240V Surface Burner Control for 8” Elements

The WB24T10146 Range Infinite Switch is a genuine OEM replacement part designed for GE, Hotpoint, and RCA electric ranges. This rotary-style infinite switch regulates the heat output of 8-inch surface burners, allowing precise temperature control from low to high.

If your burner won’t heat, stays stuck on high, or delivers inconsistent temperatures, this switch restores proper burner operation and cooking performance.

Key Features

• Controls variable power to surface heating elements
• Restores accurate temperature adjustment
• OEM-quality replacement for reliable performance
• Rotary control design for smooth operation

Specifications

• Part Number: WB24T10146
• Voltage: 240 Volts
• Amperage: 7.2 – 9.0 Amps
• Burner Size: 8-inch surface element
• Style: Infinite (rotary) switch

Compatibility

Fits select GE, Hotpoint, and RCA electric ranges.

⚠️ Always verify compatibility using your model number before ordering.

Replaces Part Numbers

• WB24T10146
• AP4343851
• PS1765836
• AH1765836
• EA1765836
• 1473851

Common Symptoms This Part Fixes

• Surface burner will not turn on
• Burner stays on high regardless of setting
• Inconsistent or uncontrollable heat levels

Installation Notes

• Disconnect power to the appliance before servicing
• Remove the control knob
• Access and replace the switch behind the control panel

🔧 For best results, test the switch with a multimeter for 240V AC before replacement.
