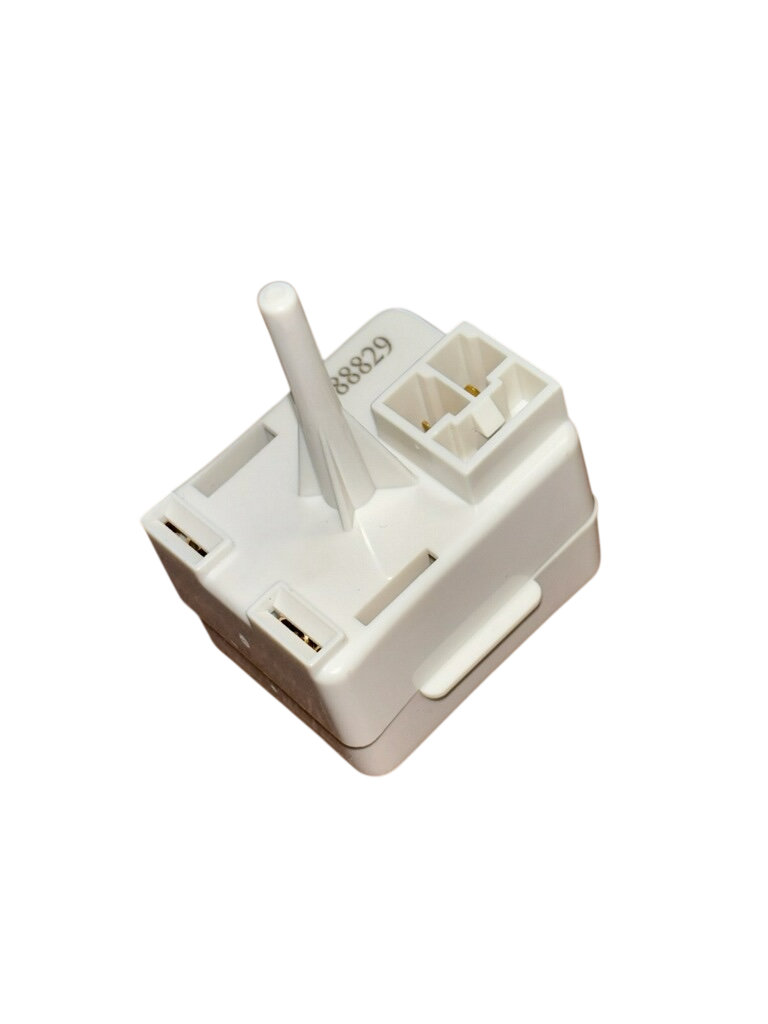

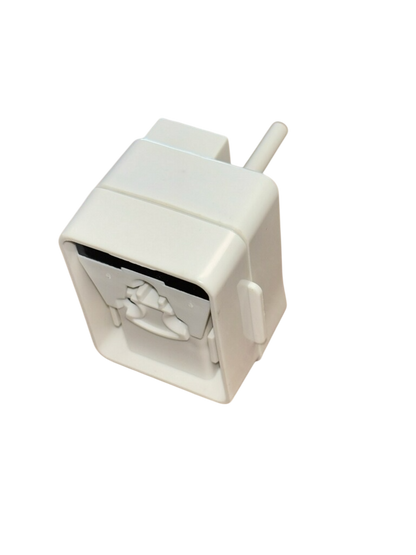

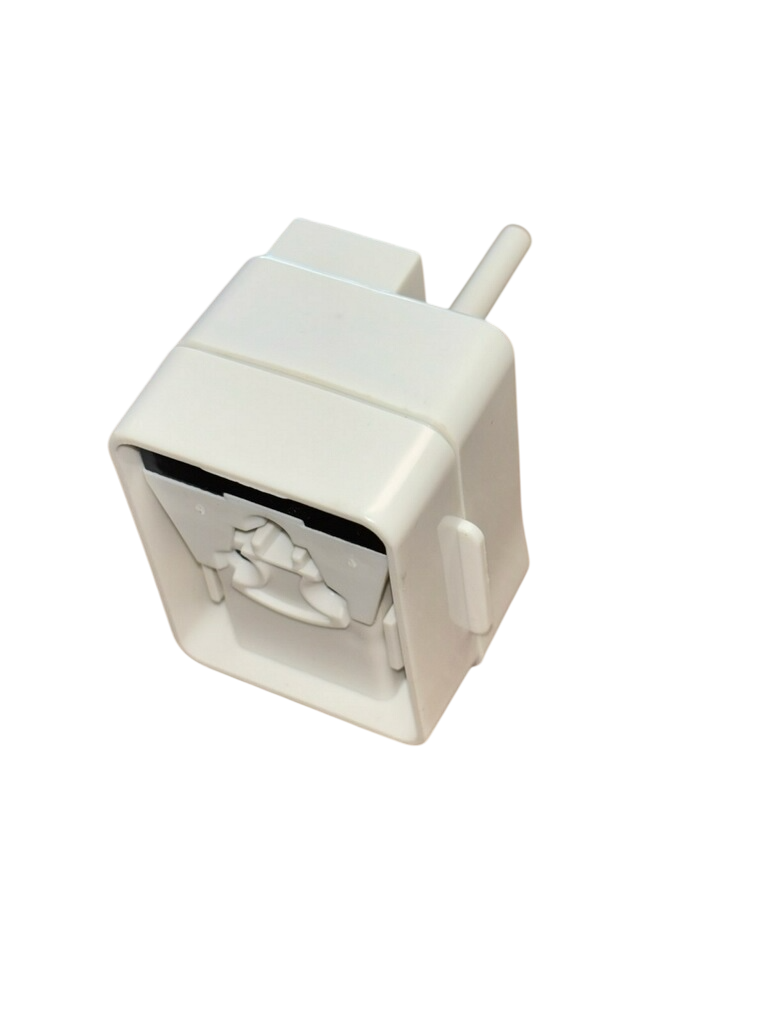

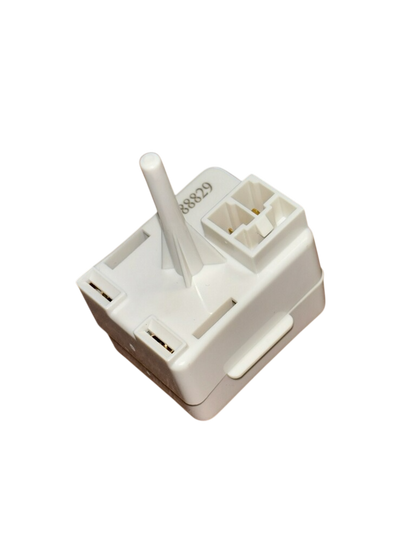

W10613606 Refrigerator Compressor Start Relay, Overload & Capacitor Kit

Replacement for Whirlpool, Maytag, Amana, Kenmore & More



Keep your refrigerator running efficiently with this W10613606 Compressor Start Device Kit, designed to restore proper compressor startup and consistent cooling performance. This complete kit includes a start relay, overload protector, and 15µF run capacitor, providing the necessary boost to help the compressor start smoothly and prevent overheating or short cycling.





🔧

What’s Included





• ✔ Start Relay
• ✔ Overload Protector
• ✔ 15µF ±5% Run Capacitor (250 VAC)
• ✔ Pre-assembled, ready for installation





What you see in the photos is exactly what you will receive. Please review images carefully to confirm compatibility before purchase.









⚙️

Product Details





• Part Number: W10613606
• Also Replaces: W10416065
• Capacitance: 15µF ±5%
• Voltage: 250 VAC
• Material: Durable plastic housing
• Condition: New
• Type: Aftermarket (non-OEM replacement)





This start device kit is designed to resolve common refrigerator issues such as:



• Refrigerator not cooling
• Compressor not starting
• Clicking sounds from compressor
• Intermittent or frequent cycling
• Unit overheating and shutting off











🔁

Replaces the Following Part Numbers





W10613606, W10416065, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, 8171210, 8208290, 8208368, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522

(Also replaces various manufacturer and aftermarket cross-reference numbers.)









🧊

Brand Compatibility





Designed to fit select refrigerator models manufactured by:



• Whirlpool
• Maytag
• Amana
• Kenmore
• Jenn-Air
• KitchenAid
• Admiral
• Crosley
• Magic Chef
• Dacor











📋

Example Compatible Models (Partial List)





Whirlpool:

ED5VHEXVB01, ED5VHEXVQ01, WRS325FDAM02



Kenmore:

106.51102110, 106.56542400, 106.58582890, 596.73503200



Kenmore Series Models:

1999A, 1999W, 2599A, 2599W, 35271, 35278, 35501, 35508, 35541, 35548,

36051, 36058, 36061, 36068, 36271, 36278, 36501, 36508, 36511,

36518, 36521, 36528, 36541, 36548, 36761, 36768, 36791, 36795, 36798



⚠️ Model list is not exhaustive. Always verify compatibility using your appliance model number before ordering.









🛠️

Installation Notes





• Disconnect power before installation
• Take photos of wiring prior to removal for proper reinstallation
• Professional installation recommended if unsure











✅

Why Choose This Kit





✔ Restores reliable compressor startup

✔ Prevents overheating and damage

✔ Cost-effective alternative to OEM parts

✔ Ideal for technicians and DIY repairs
